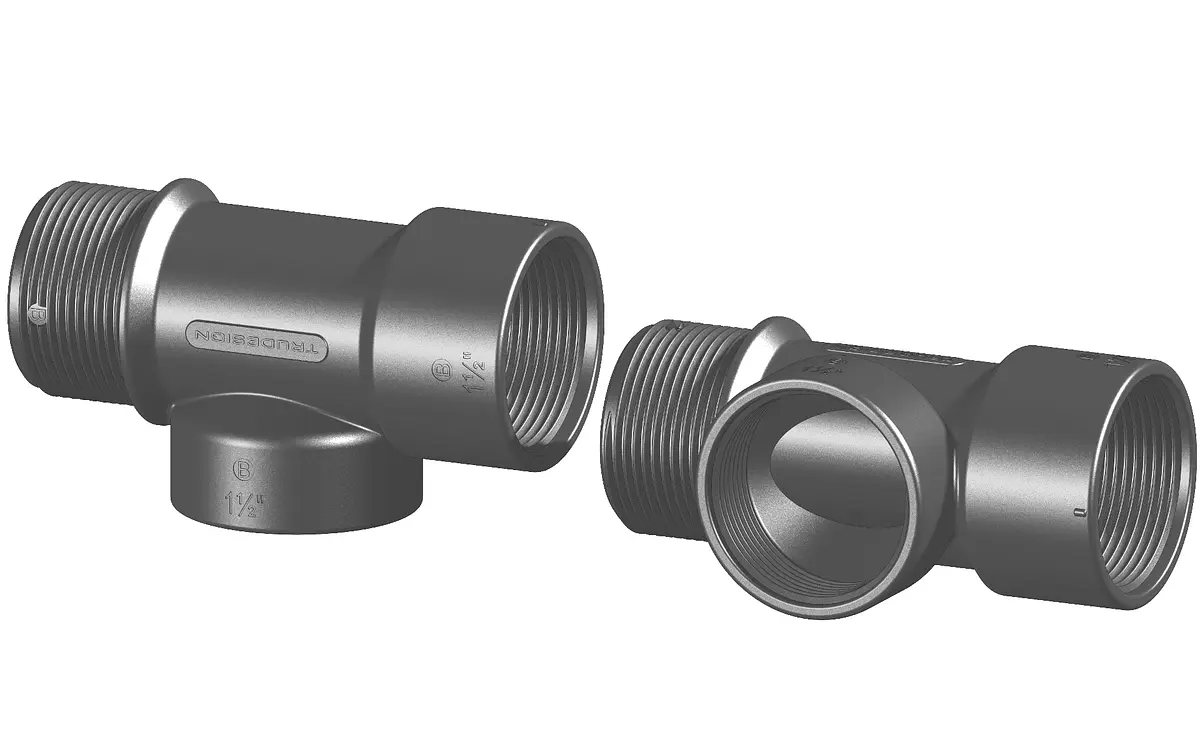

The 1½" Threaded T-Piece features 2x Female threads and 1x Male thread enabling them to be joined together to create manifolds - useful for multiple hose connections to a single Ball Valve & Thru-hull fitting. The centre female thread is shorter and designed for use with Aquavalve Tails (Straight, 90°, and 120°) giving the option of tail sizes from 19mm up to 38mm. The Plug, or Threaded Connector can also be used in the centre connection.
- NOTE: all Aquavalve Tails that are used with the T-Piece do not face-seal using the Red or Blue washer as they do when used in Aquavalves. Instead, use a suitable thread sealant or PTFE tape to seal threads. The 1½" Male and Female threads at each end are also parallel and are designed to seal through the use of a suitable sealant or PTFE tape allowing any orientation of the two joined parts. Do not over tighten!
Product Highlights
- Chemical Resistant.
- Unaffected by diesel, petrol, household chemicals, and antifouling paints.
- Corrosion Free.
- Long life with no decreased performance due to corrosion or electrolysis.
- Large Operating Range.
- Suitable for all marine conditions from - 40°C to +110°C.
- Quality Finish.
- High quality surface finish, will not discolour with green film as similar bronze fittings do.
- Strong and Lightweight.
- Manufactured from a glass reinforced nylon composite - High strength without the weight.
- UV Resistant.
- Will not degrade or discolour from the sun’s ultraviolet rays.
Parts
| Name | Size | Weight | Thread | Color | View | |
|---|---|---|---|---|---|---|
|
TPiece 1½" BSP M-F-F | 1 1/2" 38mm | 111g 3.92oz | BSP | BLACK |
