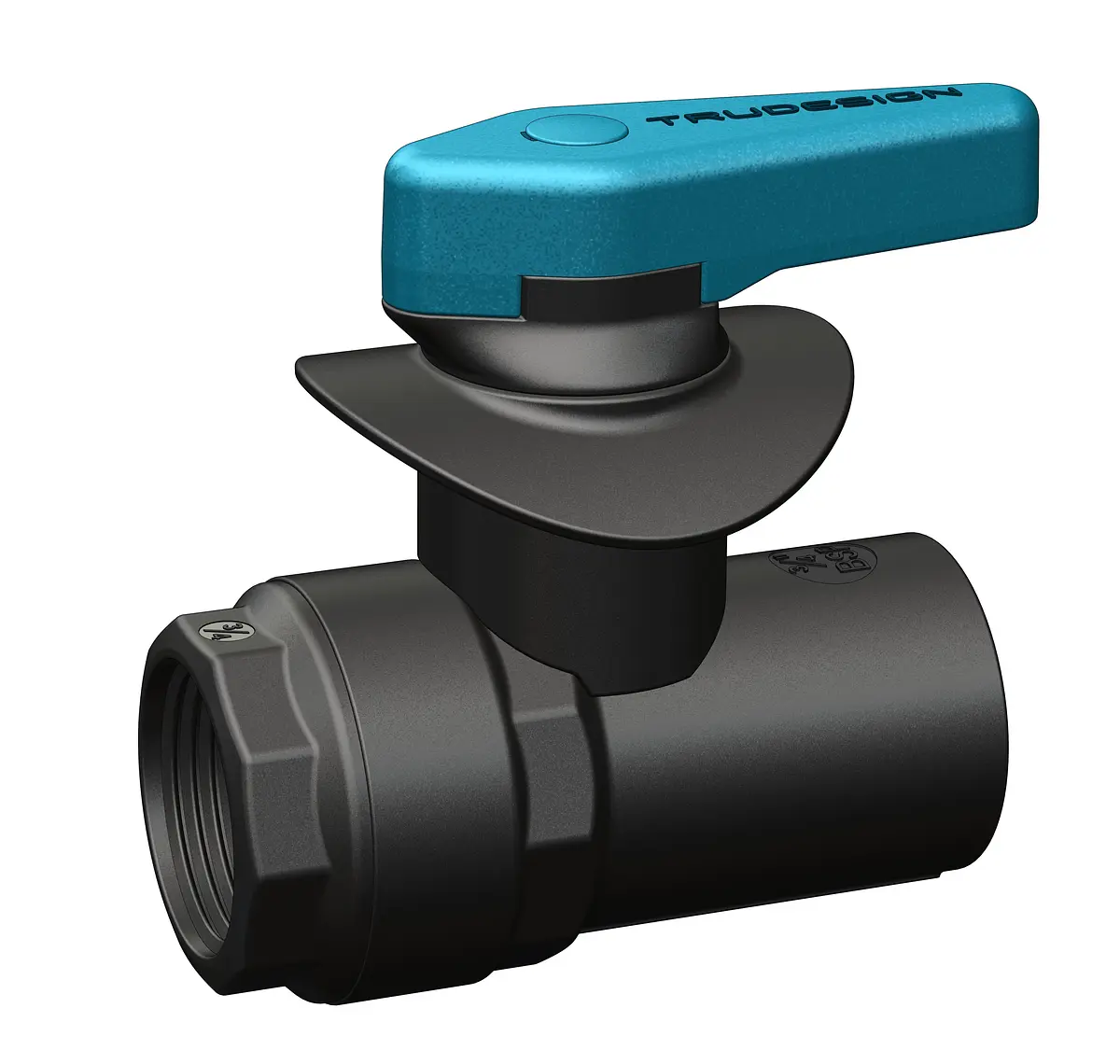

The TruDesign Air Handler Valve is designed for insulated chilled-water loops in marine air handler systems. It allows individual air handlers to be easily isolated for servicing or when not in use, while maintaining insulation integrity.
The full-flow valve minimises flow restriction, while the raised handle provides easy access and positive on/off control above the insulation. Its low thermal conductivity composite construction also helps reduce heat transfer and condensation compared with conventional metal valves.
- Made from Nylon 6 composite – gives better thermal insulation characteristics, limiting condensation risk and cooling water temperature loss.
- Insulation shroud – gives a tight seal over the lagging and protects the lagging from damage when the handle is turned.
- Standoff spigot – allows room under the handle for lagging and clear visual of the handle position above the lagging.
- On/Off stops give clear physical assurance what position the valve is in when “blind” access control is needed.
- Full flow ball valve ensures cooling water is not restricted.
Product Highlights
- Corrosion Free.
- Long life with no decreased performance due to corrosion or electrolysis.
- Large Operating Range.
- Suitable for all marine conditions from - 40°C to +110°C.
- Made in New Zealand
- TruDesign specialises in the design, tooling, manufacture and testing of high quality marine composite valves and associated products.
- Strong and Lightweight.
- Manufactured from a glass reinforced nylon composite - High strength without the weight.
Parts
| Name | Size | Length | Thread | Color | View | |
|---|---|---|---|---|---|---|
|
Ball Valve ¾" BSP Air Handler New | 3/4" 19mm | BSP | BLACK |
