The Tru-Design Aquavalve is the most versatile valve on the market today. A range of fittings is available to suit the variability of marine plumbing applications. These fittings can be used on the Aquavalve, Aquavalve through Bulkhead, Electronic Aquavalve or 3 Way Connector.

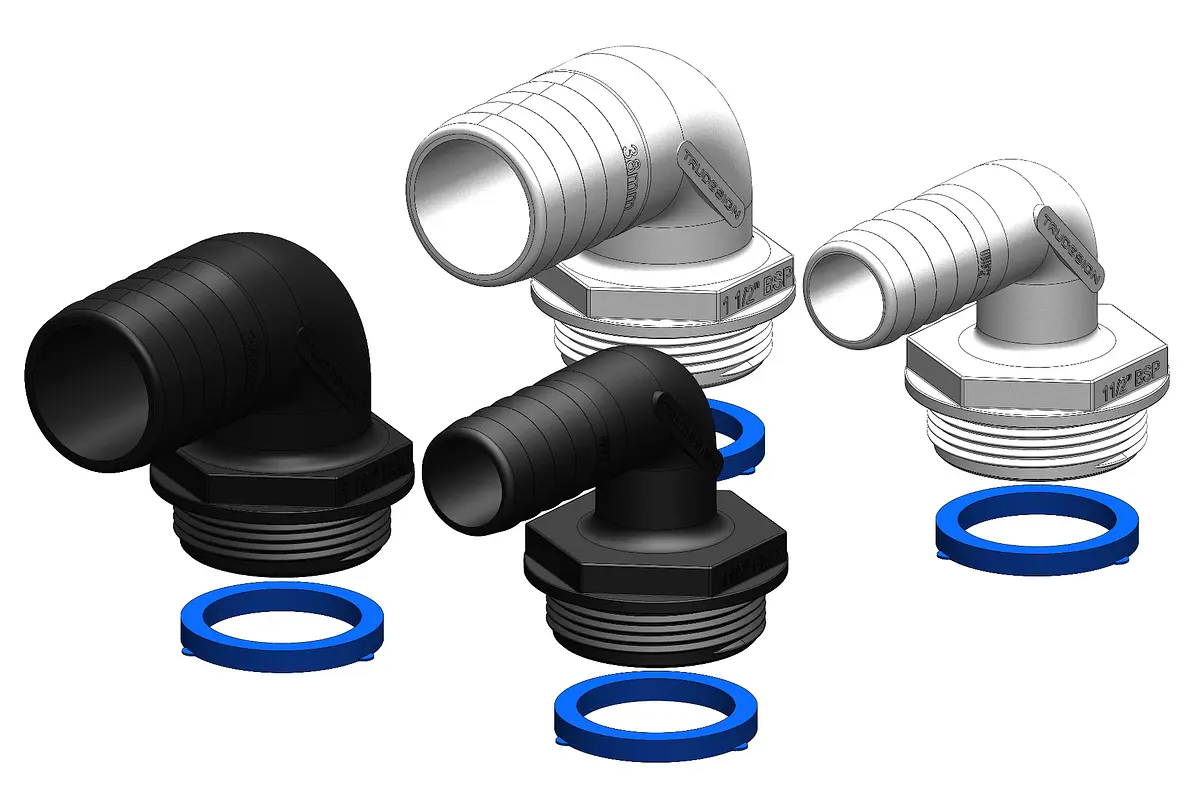

Aquavalve 90° Tail fittings are suited to the most common sizes of tubing used in marine plumbing. Tails come packaged together with a Blue Seal to allow the fitting to be rotated to a more suitable position, if required.
- The use of 2 hose clamps is recommended for secure hose fitting
- Tru-Design Aquavalve Accessories use a 1½” BSP parallel thread for securing the fitting. This is matched to the same thread on the Aquavalve body. The thread is not used for sealing. A thermoplastic rubber seal provides the sealing function
- The Aquavalve and accessories are suitable for use in the USA even though they are not NPS compatible. They form a self contained unit and are not required to interface with other components
- Do not use other fittings as they may interfere with Aquavalve operation or sealing. Not recommended for use with Ball Valves – please select from our Tail Long Thread 90° fittings
Product Highlights
- Chemical Resistant.
- Unaffected by diesel, petrol, household chemicals, and antifouling paints.
- Corrosion Free.
- Long life with no decreased performance due to corrosion or electrolysis.
- Large Operating Range.
- Suitable for all marine conditions from - 40°C to +110°C.
- Quality Finish.
- High quality surface finish, will not discolour with green film as similar bronze fittings do.
- Strong and Lightweight.
- Manufactured from a glass reinforced nylon composite - High strength without the weight.
- UV Resistant.
- Will not degrade or discolour from the sun’s ultraviolet rays.
Parts
| Name | Size | Weight | Thread | Color | View | |
|---|---|---|---|---|---|---|
|
Aquavalve 90° 25mm 1½” BSP (White) | 1" 25mm | 75g 2.65oz | BSP | WHITE | |
|
Aquavalve 90° 25mm 1½” BSP (Black) | 1" 25mm | 75g 2.65oz | BSP | BLACK | |
|
Aquavalve 90° 38mm 1½” BSP (Black) | 1 1/2" 38mm | 74g 2.61oz | BSP | BLACK | |
|
Aquavalve 90° 38mm 1½” BSP (White) | 1 1/2" 38mm | 98g 3.46oz | BSP | WHITE |
Documentation
Frequently Asked Questions
-
How to install an Electronic Diverter Valve?
-
How do I install a Thru Bulk Head Aquavalve?
-
Should I mount the Aquavalve above the water line ?
-
Can I power / wire up the Electronic Aquavalve without the control panel?
-
How to service the Manual Aquavalve?
