The Tru-Design Aquavalve is the most versatile valve on the market today. A range of fittings is available to suit the variability of marine plumbing applications. These fittings can be used on the Aquavalve, Aquavalve through Bulkhead, Electronic Aquavalve or 3 Way Connector.

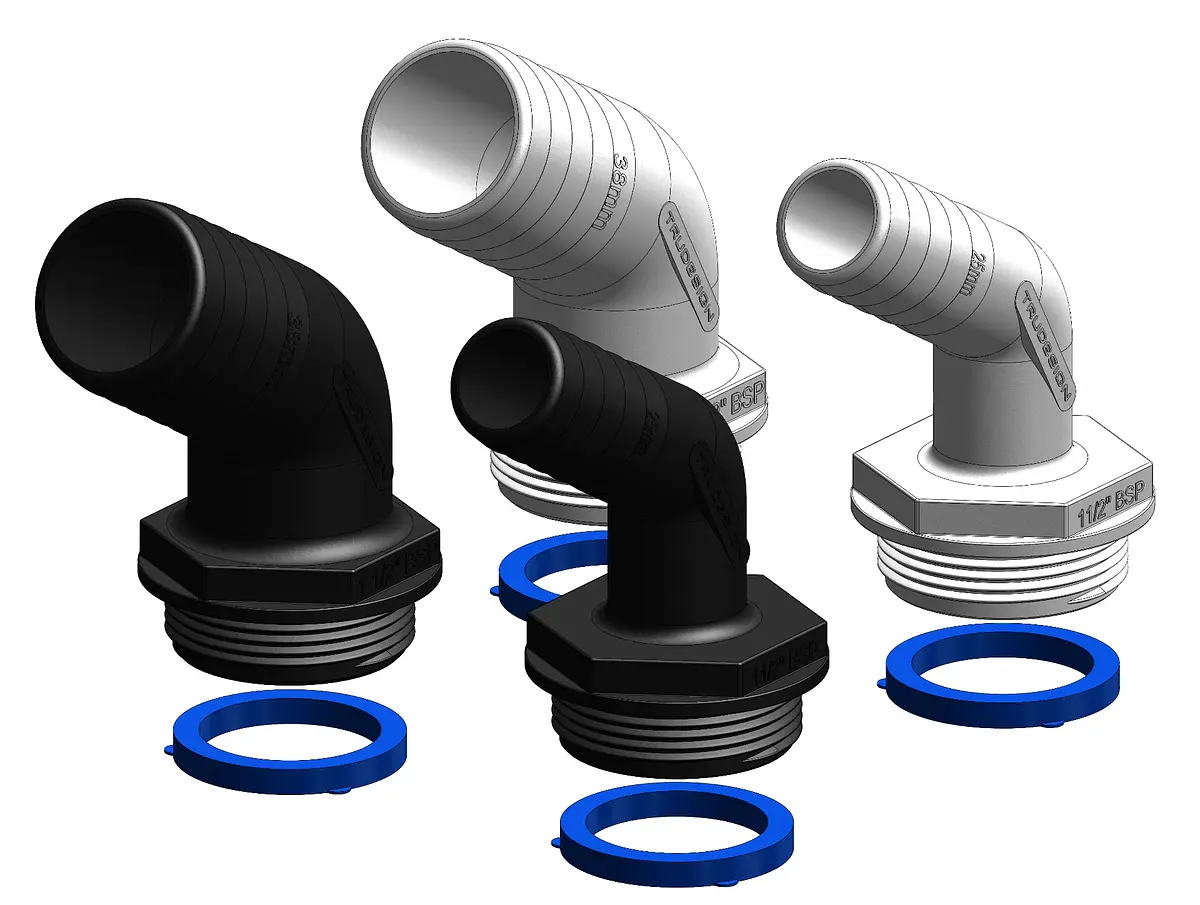

Angled Tails suited to the most common sizes of tubing used in marine plumbing. Tails come packaged with a Blue Seal to allow fitting to be rotated to a more suitable position if required.
- The use of 2 hose clamps is recommended for secure hose fitting
- Tru-Design Aquavalve Accessories use a 1½” BSP parallel thread for securing the fitting. This is matched to the same thread on the Aquavalve body. The thread is not used for sealing. A thermoplastic rubber seal provides the sealing function
- The Aquavalve and accessories are suitable for use in the USA even though they are not NPS compatible. They form a self contained unit and are not required to interface with other components
- Do not use other fittings as they may interfere with Aquavalve operation or sealing. Not recommended for use with Ball Valves – please select from our Tail Long Thread 120° fittings
Product Highlights
- Chemical Resistant.
- Unaffected by diesel, petrol, house-hold chemicals, and antifouling paints.
- Corrosion Free.
- Long life with no decreased performance due to corrosion or electrolysis.
- Quality Finish.
- High quality surface finish, will not discolour with green film as similar bronze fittings do.
- Strong and Lightweight.
- Manufactured from a glass reinforced nylon composite - High strength without the weight.
- UV Resistant.
- Will not degrade or discolour from the sun’s ultraviolet rays.
- Large Operating Range.
- Suitable for all marine conditions from - 40°C to +110°C.
Models
| Number | Name | Size | Thread | Color | View | |
|---|---|---|---|---|---|---|
|
90258 | Aquavalve 120° Tail | 25mm 1½" | BSP | WHITE | |
|
90297 | Aquavalve 120° Tail | 38mm 1½" | BSP | BLACK | |
|
90298 | Aquavalve 120° Tail | 38mm 1½" | BSP | WHITE | |
|
90465 | Aquavalve 120° Tail | 25mm 1½" | BSP | BLACK |
