Moulded from glass-reinforced nylon composite. High strength, high-modulus glass fibres within the nylon composite provide dramatic strength, stiffness, toughness and dimensional stability. These properties allow a significant weight reduction over metallic fittings.

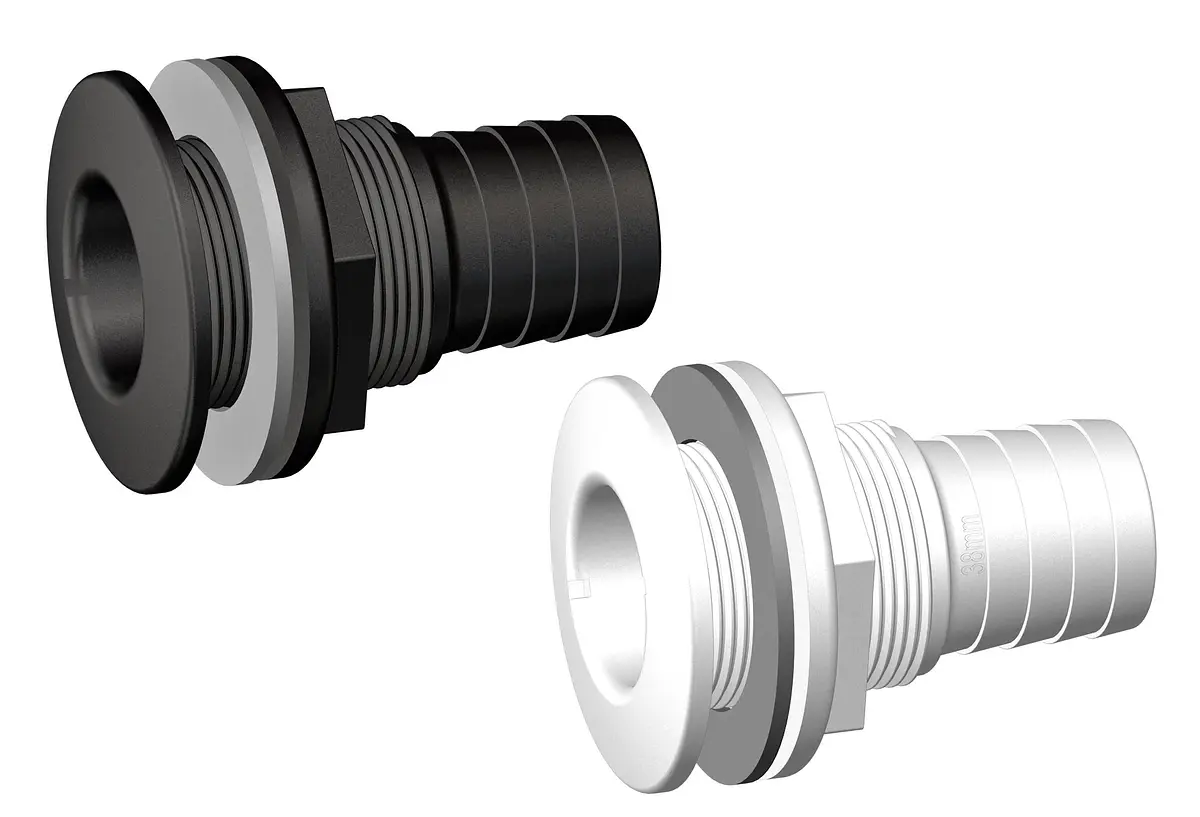

TruDesign Skin Fittings with Tails eliminate the corrosion and electrical bonding problems associated with metallic fittings.
TruDesign Skin Fittings with Tails (3/4" and above) are certified by the International Marine Certification Institute (IMCI) to meet; ISO 9093:2021 Small craft — Seacocks and through-hull fittings.
They are not for use below the water line. For below waterline applications, see our Skin Fittings Threaded or Skin Fittings Recessed product ranges (as a Ball Valve must be directly attached to the Skin Fitting for safety and compliance to marine standards).
- Manufactured from a glass-reinforced nylon composite - High strength and light weight
- Compatible with all hull types - Can be used on aluminium, steel, wood or GRP hulls
- Immune to corrosion and electrolysis - Long life with no concerns over decreased performance due to corrosion
- Chemical resistant - Impervious to diesel, petrol and antifouling paints
- UV resistant - Will not degrade or discolour with ultraviolet light from the sun
- Long Tail - Hoses can be secured with 2 hose clamps for a strong connection
Product Highlights
- Certified.
- Complies with ISO 9093:2021 and certified by IMCI International Marine Certification Institute.
- Compatible.
- Works with many hull types - aluminium, steel, wood or GRP hulls.
- Chemical Resistant.
- Unaffected by diesel, petrol, house-hold chemicals, and antifouling paints.
- Large Operating Range.
- Suitable for all marine conditions from - 40°C to +110°C.
- UV Resistant.
- Will not degrade or discolour from the sun’s ultraviolet rays.
- Paintable.
- High quality surface finish, will not discolor and can be painted with all types of antifouling.
Models
| Number | Name | Size | Thread | Color | View |
|---|---|---|---|---|---|
| 90426 | Skin Fittings with Tails | 13mm ½" | BSP | WHITE | |
| 90427 | Skin Fittings with Tails | 19mm ¾" | BSP | WHITE | |
| 90430 | Skin Fittings with Tails | 25mm 1" | BSP | WHITE | |
| 90433 | Skin Fittings with Tails | 32mm 1¼" | BSP | WHITE | |
| 90434 | Skin Fittings with Tails | 38mm 1½" | BSP | WHITE | |
| 90435 | Skin Fittings with Tails | 50mm 2" | BSP | WHITE | |
| 90436 | Skin Fittings with Tails | 28mm 1" | BSP | WHITE | |
| 90522 | Skin Fittings with Tails | 13mm ½" | BSP | BLACK | |
| 90523 | Skin Fittings with Tails | 19mm ¾" | BSP | BLACK | |
| 90524 | Skin Fittings with Tails | 25mm 1" | BSP | BLACK | |
| 90525 | Skin Fittings with Tails | 28mm 1" | BSP | BLACK | |
| 90526 | Skin Fittings with Tails | 32mm 1¼" | BSP | BLACK | |
| 90527 | Skin Fittings with Tails | 38mm 1½" | BSP | BLACK | |
| 90528 | Skin Fittings with Tails | 50mm 2" | BSP | BLACK | |
| 90810 | Skin Fittings with Tails | 16mm ½" | BSP | WHITE | |
| 90811 | Skin Fittings with Tails | 16mm ½" | BSP | BLACK |
Documentation
Frequently Asked Questions
-
Can I fit a Skin Fitting with Tail below the waterline ?
-
How do I replace an old Skin Fitting (Thru Hull) with TruDesign?
-
Do you have an overview of your products?
-
How to use the TruDesign Skin Fitting / Thru Hull Install Tool?
-
Are TruDesign Skin Fittings certified ?
