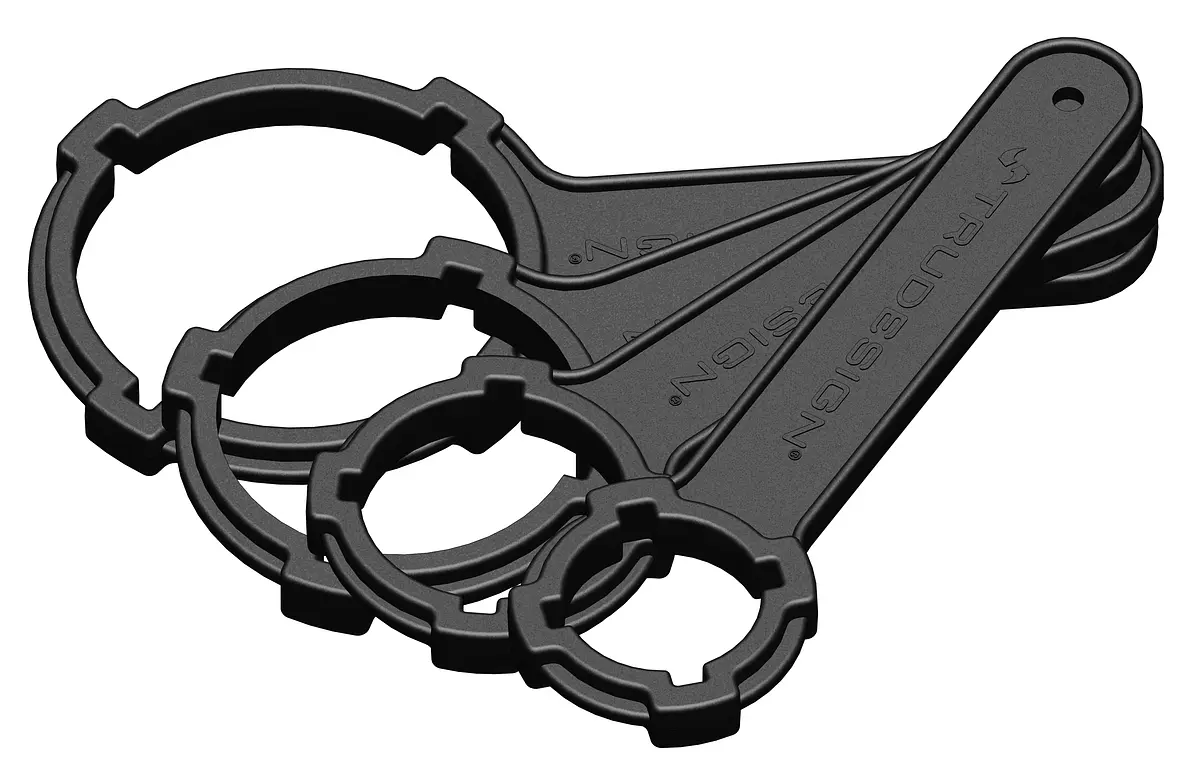

Ball Valve Spanners

Designed for easy installation of TruDesign Ball Valves.

  • <b>Installation</b>
  • 1. If the valve is to be assembled to a skin fitting, ensure that the position of the skin fitting is such that it will be in a protected area, but readily accessible
  • 2. Ensure threads of mating fittings have a parallel thread and it is clean and undamaged
  • 3. Apply sealing tape or other suitable thread sealant to the thread of the Skin Fitting or Tail
  • 4. Screw ball valve onto the mating fitting using the correct Ball Valve Spanner (see sizes below)
  • 5. Tighten any attached fittings to a maximum of 16Nm (12ft/lbs)
  • 6. Check that the final position of the Ball Valve is such that it allows full movement of the handle from the open to closed position, and that it is clear of objects which may cause inadvertent operation
Content image

Product Highlights

Chemical Resistant.
Unaffected by diesel, petrol, house-hold chemicals, and antifouling paints.
Corrosion Free.
Long life with no decreased performance due to corrosion or electrolysis.
Large Operating Range.
Suitable for all marine conditions from - 40°C to +110°C.
Quality Finish.
High quality surface finish, will not discolour with green film as similar bronze fittings do.
Strong and Lightweight.
Manufactured from a glass reinforced nylon composite - High strength without the weight.
UV Resistant.
Will not degrade or discolour from the sun’s ultraviolet rays.

Models

Number Size Color View
90476 ½" BLACK
90477 ¾" 1" BLACK
90478 1¼" 1½" BLACK
90479 2" BLACK
