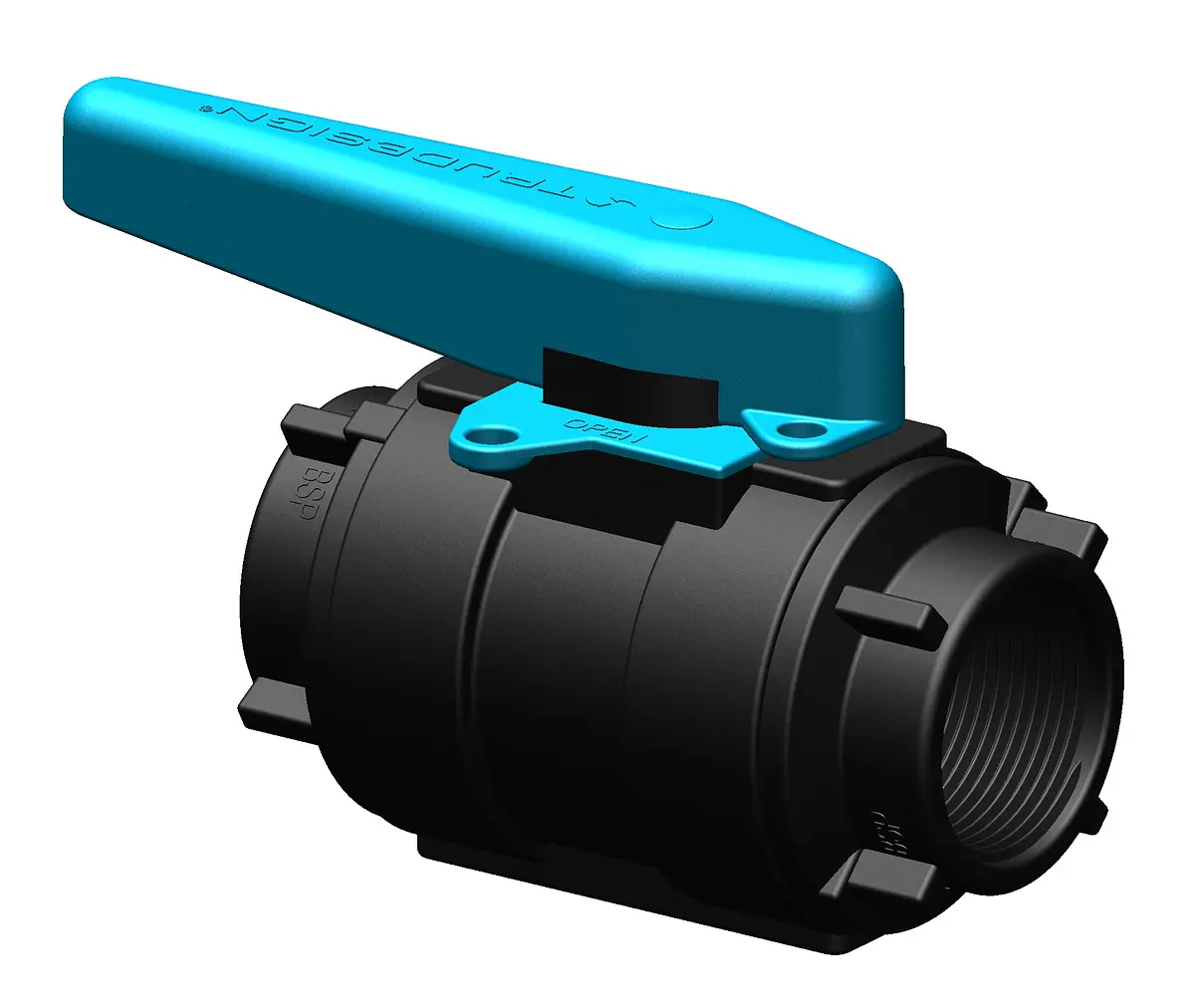

Ball Valve 1¼" BSP

Manual Ball Valve

TruDesign Certified Ball Valves are designed and made in New Zealand for use in marine applications above and below the water line. The body of the Ball Valve is manufactured in glass-reinforced nylon composite with high impact and tensile strength resulting in a light weight unit, free from corrosion and electrolysis issues. The ball and sealing rings utilize a PTFE polymer to ensure a smooth action, and continuous ease of operation over many years. The Ball Valve is available in both BSP and NPS Parallel thread forms and can be locked in the closed position for use on toilet waste outlets.

Specifications

Size
32mm (1 1/4")
Thread
BSP
Connections
Female Thread 1 1/4" BSP (32mm)
Weight
430g (15.17oz)
Colour
Black

Part numbers

90240
Loose
90551
Packaged
Bureau Veritas Marine Division Type Approval
American Boat & Yacht Council
International Marine Certification Institute
Marine & Coastguard Agency
Ball Valve 1¼" BSP

Documentation

Parts

  Name Size Thread View
Ball Valve ½" BSP Ball Valve ½" BSP 1/2"
13mm 		BSP
Ball Valve ½" NPS Ball Valve ½" NPS 1/2"
13mm 		NPS
Ball Valve ¾" BSP Ball Valve ¾" BSP 3/4"
19mm 		BSP
Ball Valve ¾" NPS Ball Valve ¾" NPS 3/4"
19mm 		NPS
Ball Valve 1" BSP Ball Valve 1" BSP 1"
25mm 		BSP
Ball Valve 1" NPS Ball Valve 1" NPS 1"
25mm 		NPS
Ball Valve 1¼" BSP Ball Valve 1¼" BSP 1 1/4"
32mm 		BSP
Ball Valve 1¼" NPS Ball Valve 1¼" NPS 1 1/4"
32mm 		NPS
Ball Valve 1½" BSP Ball Valve 1½" BSP 1 1/2"
38mm 		BSP
Ball Valve 1 ½" NPS Ball Valve 1 ½" NPS 1 1/2"
38mm 		NPS
Ball Valve 2" BSP Ball Valve 2" BSP 2"
50mm 		BSP
Ball Valve 2" NPS Ball Valve 2" NPS 2"
50mm 		NPS
Ball Valve 3" BSP Ball Valve 3" BSP 3"
76mm 		BSP

Frequently Asked Questions

  • Do TruDesign Ball Valves require lubrication ?
  • Can I run Petrol or Diesel through TruDesign fittings ?
  • Can I remove the handle from a TruDesign Ball Valve?
  • Can I screw a tapered fitting into a TruDesign Ball Valve ?
  • What sealant should I use between a bronze or stainless skin fitting and a TruDesign ball valve ?
  • Are TruDesign Ball Valves approved / compliant to international standards?
  • What sealant can I use on TruDesign threads ?
  • Can I fit TruDesign Ball Valves to bronze or Stainless skin fittings ?
