Aquavalve 90° Tails

For 90° hose attachment to the Manual and Electronic Aquavalves

C70444a8442ea94d63d4f8dbfa710727 full

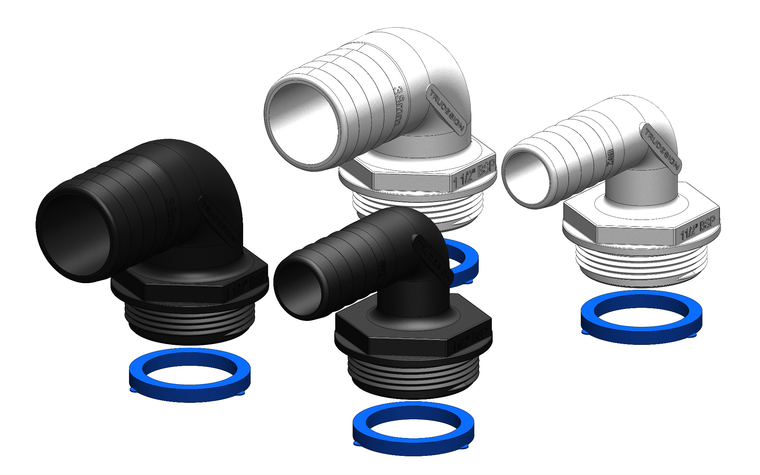

Aquavalve 90° Tails

Aquavalve 90° fittings are suited to the most common sizes of tubing used in marine plumbing. Tails come packaged together with a Blue Seal, which is thicker than the Red Seals included in the Aquavalve, to allow the fitting to be rotated to a more suitable position if required.
Not recommended for use with Ball Valves – please select from our Tail Long Thread 90° fittings


Download Info Sheet

Features

  • Manufactured from a glass reinforced nylon composite - High strength and light
  • weight
  • Long tail feature - The use of 2 hose clamps is recommended for secure hose fitting
  • Immune to corrosion and electrolysis - Long life with no concerns over decreased performance due to corrosion
  • Chemical resistant - Impervious to diesel, petrol and antifouling paints
  • UV resistant - These fittings will not break down with ultraviolet light or discolour from the sun
  • High quality surface finish - Will not discolour with green film as similar bronze fittings do
  • Separate sealing component - Secure reliable sealing for critical sanitary applications
  • Large operating temperature range - Suitable for all marine environments, from -20°C to +110°C

Frequently Asked Questions

Models

24effed59f8ab1af5bf7ac4c3fa52cc9 grid
Aquavalve 90° Tails

90259

Aquavalve 90° 25mm 1½" BSP

83076d05a9d6875fd1244aeb2719edd1 grid
Aquavalve 90° Tails

90293

Aquavalve 90° 38mm 1½" BSP

1a7ab5fdaf2c2a0bb2a629ecf73df7e3 grid
Aquavalve 90° Tails

90299

Aquavalve 90° 38mm 1½" BSP

09b163bf85ecdf646b9cce8e65cb5d5c grid
Aquavalve 90° Tails

90466

Aquavalve 90° 25mm 1½" BSP
