Solenoid Vented Loop

Superior composite siphon break solutions for marine applications

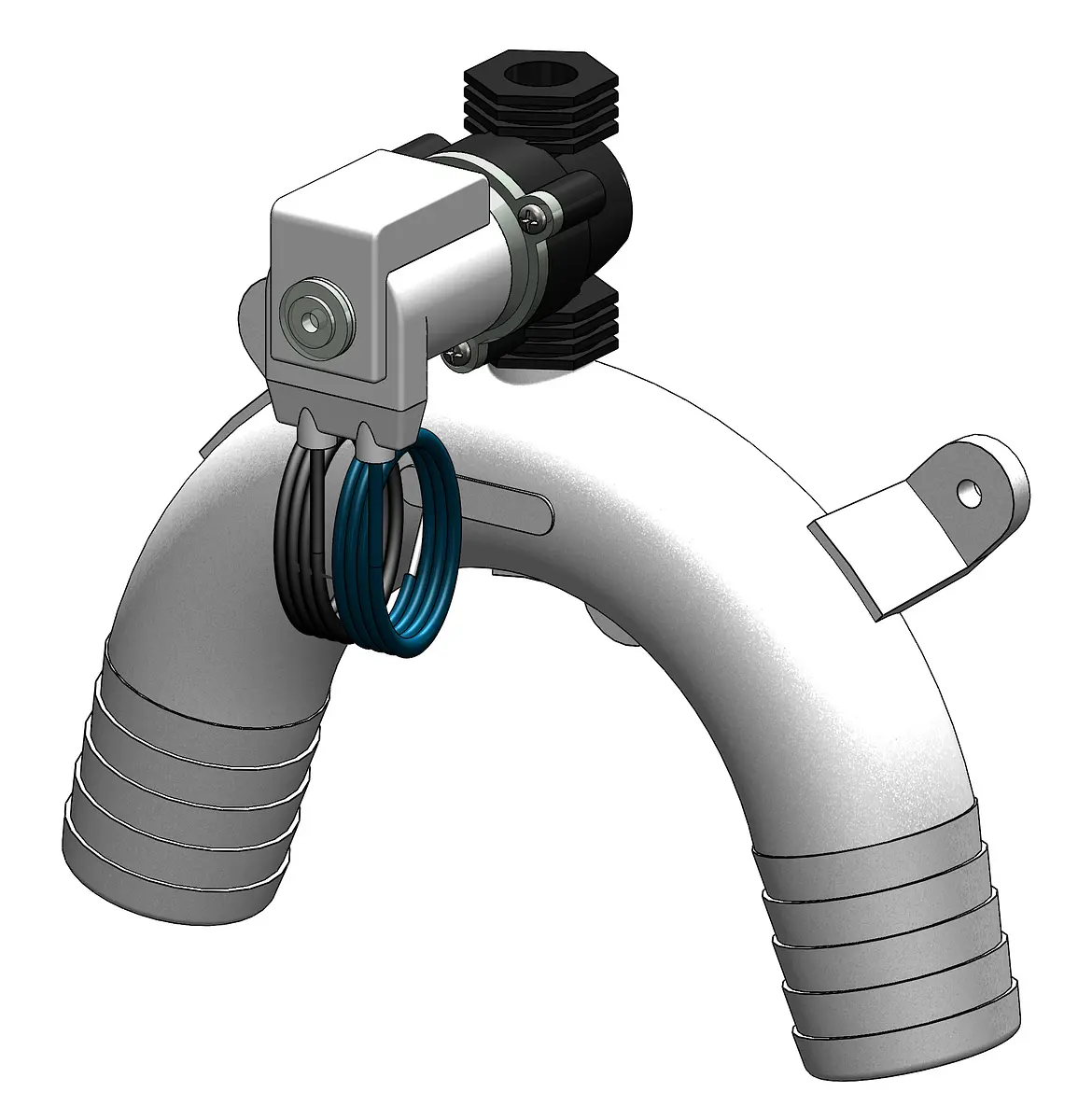

Solenoid Vented Loop

Designed and made in New Zealand, Tru-Design Vented Loops with Solenoid are the superior composite siphon break solutions for marine applications. Vented Loops prevent water siphoning from underwater skin fittings back into a vessel and thereby guard against accidental flooding and sinking.

These vented Loops are used predominantly in toilet to overboard applications, toilet inlet applications and holding tank to overboard applications.

A Solenoid controlled Vented Loop allows the vent to be switched to fully closed. This eliminates air entering the system as occurs with a standard vented loop. The solenoid used is normally open, requiring power only to close the valve.

Vented Loops are moulded from a glass reinforced nylon composite. High strength, high-modulus glass fibres impregnated into the nylon provides dramatic strength, stiffness, toughness, and dimensional stability to our loops.

Download PIS Vented Loop with Solenoid

Features

  • Manufactured from a glass reinforced nylon composite - High strength and light weight
  • Robust polymer covered solenoid - Long life in the marine environment
  • Diaphragm valve - Faster breaking of siphon due to larger flow rate available
  • Female threaded Solenoid Valve - No brass/bronze adapter to corrode
  • Constant internal diameter - No reduction in flow
  • Self-contained mounting - 3 screw mounting posts give secure and easy installation
  • Chemical resistant - Impervious to diesel, petrol and antifouling paints
  • UV resistant - These fittings will not break down with ultraviolet light or discolour from the sun
  • High quality surface finish - Will not discolour with green film as similar bronze fittings do
  • Large operating temperature range - Suitable for all marine environments, from -40°C to +110°C.

Frequently Asked Questions

Models

Solenoid Vented Loop

90462

with 12V Solenoid 19mm

Solenoid Vented Loop

90463

with 12V Solenoid 25mm

Solenoid Vented Loop

90464

with 12V Solenoid 38mm

Solenoid Vented Loop

90467

12V Solenoid only

Solenoid Vented Loop

90534

24V Solenoid only

Solenoid Vented Loop

90624

with 24V Solenoid 19mm

Solenoid Vented Loop

90625

with 24V Solenoid 25mm

Solenoid Vented Loop

90626

with 24V Solenoid 38mm
